Factory Direct High Efficiency Paper Can Production Line POE Composite Cans for Christmas Gift Packaging

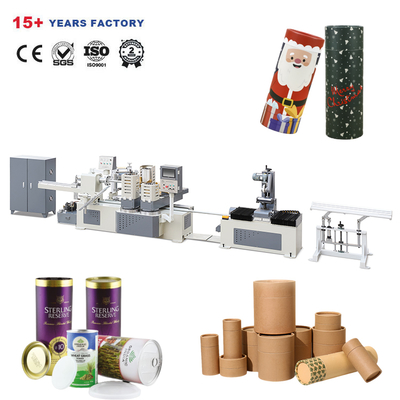

Large Image : Factory Direct High Efficiency Paper Can Production Line POE Composite Cans for Christmas Gift Packaging

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Chuangfeng

Contact Now

Detailed Product Description

Product Type:	Paper Core Machine	Processing Type:	WINDING MACHINE
Voltage:	380V / 3phase / 50HZ (customizable)	Dimension(lwh):	460019501900mm
Warranty:	12 Months	Production Capacity:	1-25m/min.
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	PLC, Motor	Weight (KG):	1500
Brands Of Components:	Can Be Cutustomized	After-sales Service Provided:	Service Machinery Overseas

Production Description

Model	CFJG-100
Paper Layer	33-16 Layer
Inner Diameter	25-200mm
Wall Thickness	1-10mm
Online Cutting Length	1000-5000mm
Winding Nose	Four Heads Double Belt
Working Speed	1-20 Meters/min
Speed Regulation	By Inverter
Cutting System	Single High Speed Steel Blade
Gluing Way	Double Sides
Length Fixing	By Infrared
Working Air Pressure	0.6 Mpa
Operator	380V/3 Phase/50Hz
Paper Reel Stand	16 Layers
Glue Unit	16 Layers
Inner Paper Stand	1 Set
Tube Unloading Shelf	1 Set
Mandrel Shaft	2 Pieces
Belt	4 Pieces
Extra Blades	3 Pieces
Measurement	400016501800mm
Weight	3400Kgs
