Cheap Price Automatic Spiral Paper Tube Core Machine 1-30m/min. Paper Core Making Machine on Sale

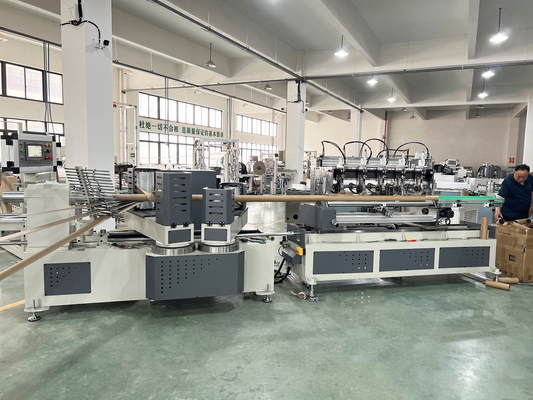

Large Image : Cheap Price Automatic Spiral Paper Tube Core Machine 1-30m/min. Paper Core Making Machine on Sale

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Chuangfeng
Certification:	ce

Contact Now

Detailed Product Description

Product Type:	Paper Core Machine	Processing Type:	WINDING MACHINE
Voltage:	380V / 3phase / 50HZ (can Be Customized)	Dimension(lwh):	651514791600mm
Warranty:	1 Year	Production Capacity:	1-30m/min.
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	PLC, Motor	Weight (KG):	4800
Product Name:	Four-heads Multi-knives Paper Tube Making Machine	Application:	Paper Tube Core Production

Production Description

Model	CFJG-30
Paper Layer	16 Layers
Inner Diameter	20-120mm
Wall Thickness	1-10mm
Cutting Length	Thickness 0.5-5mm: 100-1200mm Thickness＞5mm: 200-1200mm
Winding Nose	Four-heads Double belts
Working Speed	1-30meters/min (relates to size and material quantity)
Speed Control	By Inverter
Gluing Way	Double Sides
Paper Reel Stand & Glue Unit Movement	Automatic Adjusted on Screen
Working Air Pressure	0.6Mpa
Operator	1-2 Persons
Power Supply	380V/3 Phase/50Hz
Paper Reel Stand including Paper Lifting Device	16 Layers Integral Type
Weight	4800kgs
Inner Paper Shelf	1 Set
Mandrel Shaft (mold)	2 Pieces
Belt	4 Pieces
Extra blades	5 Pieces
Useful Tool	1 Set
