CFJG-50 Small size tube & core making machine is suitable for Toilet Paper Cores;Preservative Film Cores and other paper tubes & cores.
-- PLC controlled Automatic Paper Core Making Machine adopts Computerized Control System. All the working parameters can be setup on the controlling panel (touch screen type) .
-- Single circular blade inline cutting system with cutting range 500-5000mm.
-- All the brands of components like Motor; Inverter; PLC; Touch Screen can be customized as per your requirement.
Technical Parameters
CFJG-SK-150 Servo Controlled Paper Tube Making Machine
Technical Parameter
Control System
Paper Layer
24 Layers
Motor
18.5kw Wannan
Inner Diameter
50-250mm
PLC
Xinjie
Wall Thickness
1-15mm
Operating Panel
Panel Master
Winding Speed
1-25meters/min
Inverter
Schneider
Winding Nose
Double noses single belt
Servo Motor & Driver
Schneider
Length Fixing
By Encoder
Pneumatic Components
Jingwei
Cutting Way
Servo Synchronous Tracking Cut
Electric Components
CHNT & Schneider
Cutting Length
500-5000mm (speed will be low when cutting length<1000mm)
Bearing
Haerbin
Gluing Way
Double sides
Configuration
Shaft Fixing
by Flange
Gluing System
24 Layers
Speed Control
By Inverter
Paper Reel Stand including Paper Lifting Device
24 Layers Integral Type
Operator
1-2 persons
Working Air Pressure
0.6Mpa
Inner Paper Shelf
1 Set
Power Supply
380V/3Phase/50Hz
Discharging Shelf
1 Set
Measurement & Weight
Mandrel Shaft (mold)
2 Pieces
Measurement
4600*1950*1900mm
Belt
4 Pieces
Working Space
15000*9000mm
Useful Tool
1 Set
Weight
7000kgs
Extra blades
5 Pieces
Pictures

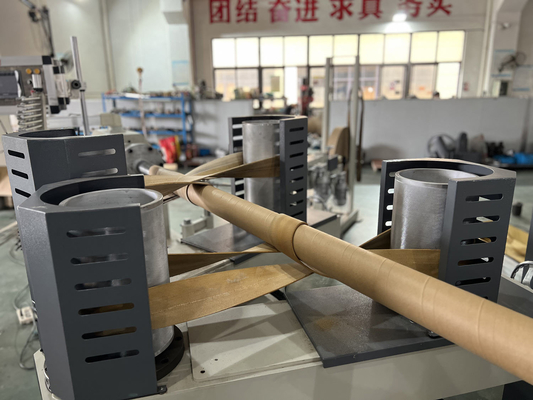

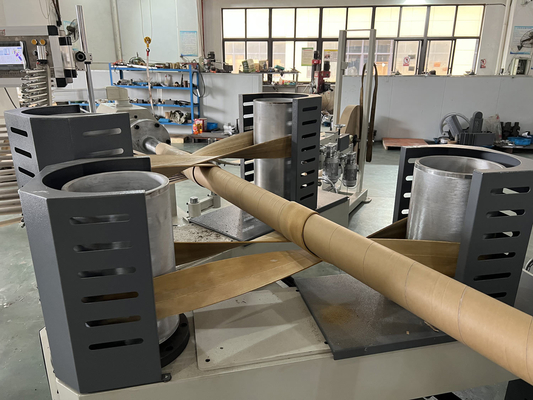

Four-heads Double-belts Spiral Winding
Servo Motor Controlled Cutting System; Tube Lengths no error.
Cutting Length 500-5000mm ((speed will be low when cutting length < 1000mm)

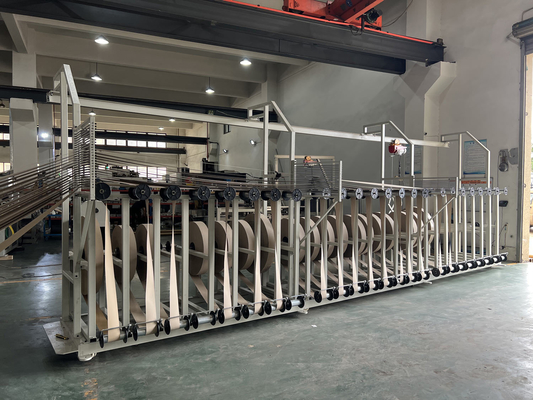

Equipped with 24layers paper reel stand*1set

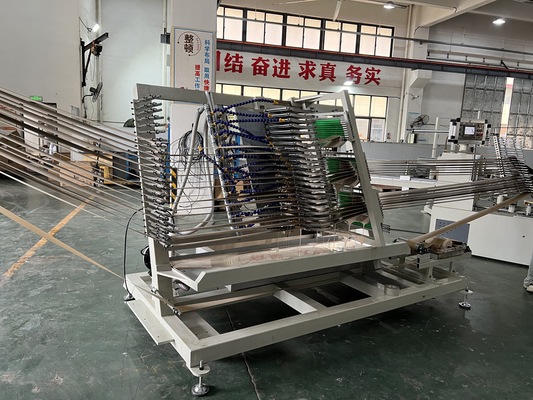

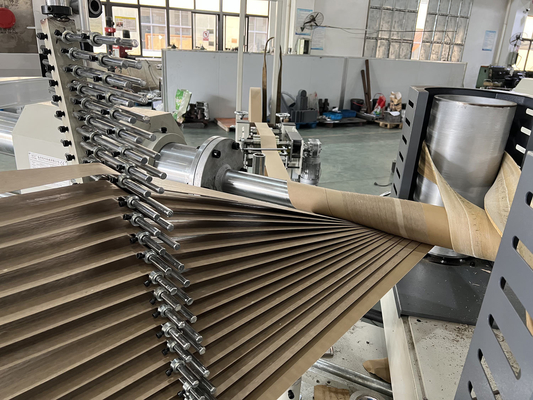

24 layers spraying glue system

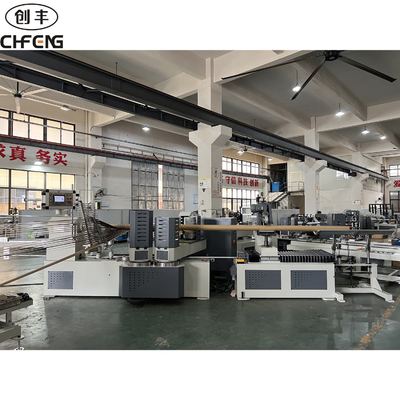

Machines in Customers' Workshop
Finished Products
company 0801
Q:ARE YOU THE MANUFACTURER OR TRADING COMPANY?
A:WE ARE MANUFACTURER.OUR COMPANY HAS BEEN MAKING PAPER TUBE MACHINES FOR 15+ YEARS AND PAPER STRAW MACHINES FOR 8YEARS
Q:WHAT CAN YOU BUY FROM US?
A:PAPER TUBE MAKING MACHINE,PAPER TUBE CUTTING MACHINE
PAPER SLITTER REWINDING MACHINE,FULL LINE OF PAPER STRAW MACHINES
PAPER TUBE &STRAW PRODUCING RELATED MACHINES
Q:WHAT’S THE LEAD TIME?
A:PAPER STRAW MACHINE:15-30DAYS
PAPER TUBE MACHINES:AROUND 30DAYS DEPENDS ON MACHINE TYPE.
Q:WHAT TERMS OF PAYMENT YOU ACCEPT?
A:IT IS NEGOTIABLE.MOSTLY USE T/T AND SIGHT L/C.
Q:WHAT IS YOUR AFTER -SALES SERVICE?
A:1.WE HAVE EXPERIENCED TECHNICIAN TEAM WHO CAN SUPPORT OVERSEAS
INSTALLATION&TRAINING.
2.WE PROVIDE DETAIL INSTALLATION&OPERATION VIDEOS.
