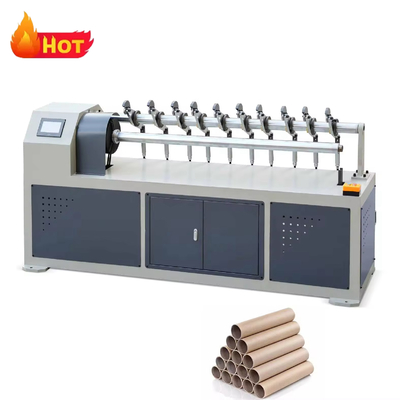

High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine

High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine
High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine

Large Image :  High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: ce
Contact Now
Detailed Product Description
Product Type: Paper Core Machine Processing Type: Cutting Machine
Voltage: 80V/3 Phase/50Hz Dimension(l*w*h): 2450*700*1200mm
Warranty: 1 Year Production Capacity: 1-30m/min.
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Core Components: PLC, Motor Weight (KG): 900
Product Name: Paper Tube Cutting Machine With Multiple Knives Applicable Industries: Manufacturing Plant
Showroom Location: None Condition: New
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Weight: 900

High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine 0
Production Description
Product Name
Thick Tube With Multiple Knives
Inner diameter
50-152mm
Wall Thickness
1-15mm
Mother Tube Length
1650mm
Cutting Tube Length
90-1600mm
Speed
30 Times/min
Cutting Blade
10 Sets（Standard）
Tube Feeding/Removing
Manual
Tube Fixing
By Automatic Chuck
Cutting Way
Pneumatic
Working Air Pressure
0.6Mpa
Power Supply
380V/3 Phase/50Hz
Operator
1-2 Persons
Measurement
380V/3 Phase/50Hz
Weight
2450*700*1200mm
Glue Unit
900Kgs
Tube Unloading Shelf
1 Set
High Precision Kraft Paper Core Tube Cutting Machine Spiral Cardboard Pipe Core Making Cutter Machine 2
