Factory Direct Paper Core Cutting Machine Paper Tube Core Cutting Machine with Global Shipping

Large Image : Factory Direct Paper Core Cutting Machine Paper Tube Core Cutting Machine with Global Shipping

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Chuangfeng
Certification:	ce

Contact Now

Detailed Product Description

Product Type:	Paper Core Machine	Processing Type:	Cutting Machine
Voltage:	80V/3 Phase/50Hz	Dimension(lwh):	24507001200mm
Warranty:	1 Year	Production Capacity:	1-30m/min.
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Core Components:	PLC, Motor	Weight (KG):	900

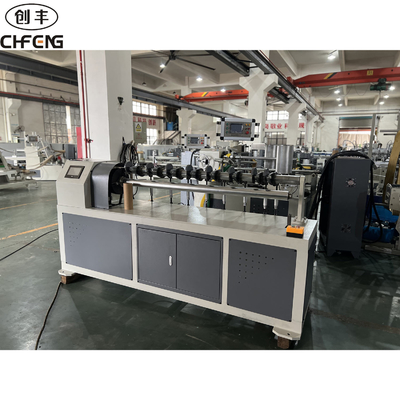

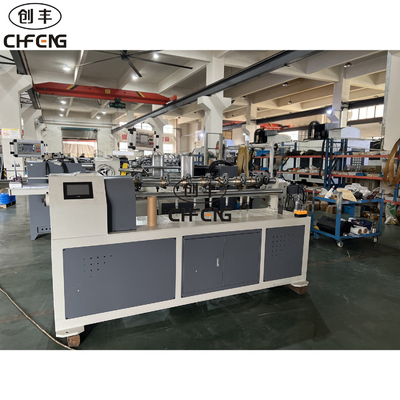

Product Name:	Paper Tube Cutting Machine With Multiple Knives

Production Description

Product Name	Thick Tube With Multiple Knives
Inner diameter	50-152mm
Wall Thickness	1-15mm
Mother Tube Length	1650mm
Cutting Tube Length	90-1600mm
Speed	30 Times/min

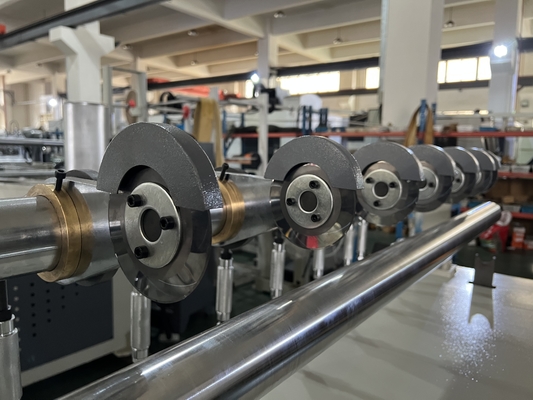

Cutting Blade	10 Sets（Standard）
Tube Feeding/Removing	Manual
Tube Fixing	By Automatic Chuck
Cutting Way	Pneumatic
Working Air Pressure	0.6Mpa
Power Supply	380V/3 Phase/50Hz
Operator	1-2 Persons
Measurement	380V/3 Phase/50Hz
Weight	24507001200mm
Glue Unit	900Kgs
Tube Unloading Shelf	1 Set
