POY DTY Paper Tube Textile Cores Packing Cores Curling Grooving Grinding MakingMachine

Large Image : POY DTY Paper Tube Textile Cores Packing Cores Curling Grooving Grinding MakingMachine

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	chuangfeng

Contact Now

Detailed Product Description

Product Type:	Paper Core Machine	Processing Type:	Cutting Machine
Voltage:	380V/Customized	Power(w):	2.2KW
Dimension(lwh):	200016001200mm	Warranty:	1 Year
Production Capacity:	30pcs/min	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor
Brands Of Main Configurations:	Can Be Appointed	After Warranty Service:	Spare Parts
Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Construction Works	Showroom Location:	None
Condition:	New	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Weight:	850 Kg

Product Description

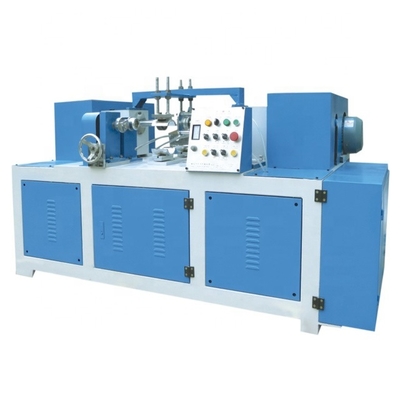

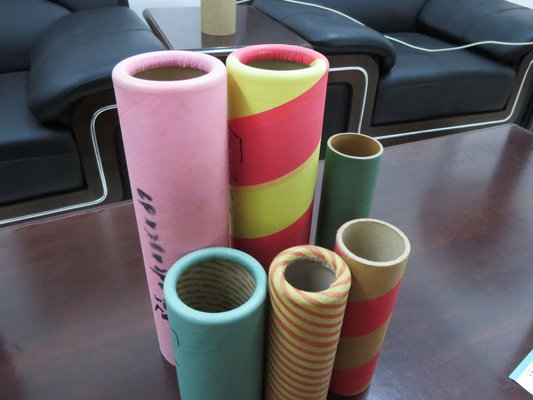

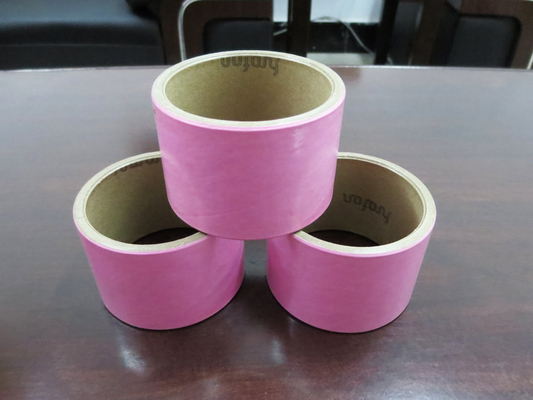

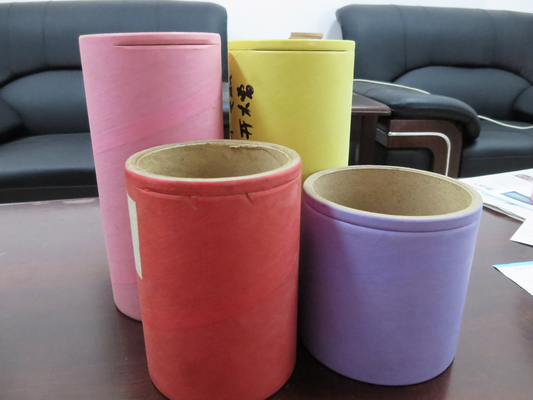

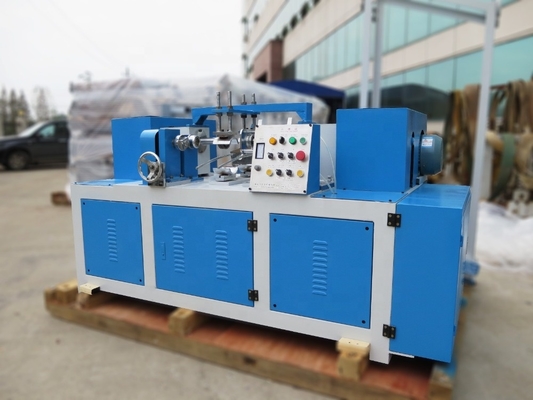

CFJB-50 Paper Tube Core Curling Machine is suitable for textile cores, packing cores and other cores' edge curling/grooving/grinding.It's widely used for POY/DTY paper tubes production line.

Technical Parameters

Technical Parameter		Control	Control Panel
Inner diameter	50-150mm	Motor	2.2kw Wannan
Wall Thickness	1-4mm	Pneumatic Component	Jingwei
Curling Length	50-350mm	Electric Component	Schneider
Curling Speed	20-30pcs/min.	Signal Component	Hugong
Driving way	Pneumatic	Size
Tube Fixing way	Pneumatic	Size	200016001200mm
Tube Loading way	Manually	Weight	850kgs
Working air pressure	0.3-0.6Mpa	Enclosed Spare Parts
Operator	1 person	Tool	1 Set
