CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine
CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine

Large Image :  CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: ce
Contact Now
Detailed Product Description
Product Type: Paper Core Machine Processing Type: Curling Machine
Voltage: 380V / 3Phase / 50Hz Power(w): 2.2kw
Dimension(l*w*h): 2000*1600*1200mm Warranty: 12 Months
Production Capacity: 30 Pcs/Min Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor
Brands Of Main Configurations: Can Be Appointed Applicable Industries: Garment Shops, Manufacturing Plant
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Local Service Location: None
Showroom Location: None Condition: New
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Weight: 850kgs

Product Description

CFJB-50 Paper TubeCore Curling Machine is suitable for textile cores, packing cores and other cores' edge curling.



Technical Parameters



Technical Parameter

Control

Control Panel

Inner diameter

50-150mm

Motor

2.2kw Wannan

Curling Thickness

1-4mm

Pneumatic Component

Jingwei

Grooving Thickness

4-15mm

Bearing

Haerbin

Curling Length

50-350mm

Electric Component

CHNT

Curling Speed

20-30pcs/min.

Signal Component

Hugong

Driving way

Pneumatic

Size

Tube Fixing way

Pneumatic

Size

2000*1600*1200mm

Tube Loading way

Manually

Weight

850kgs

Working air pressure

0.3-0.6Mpa

Enclosed Spare Parts

Operator

1 person

Tool

1 Set

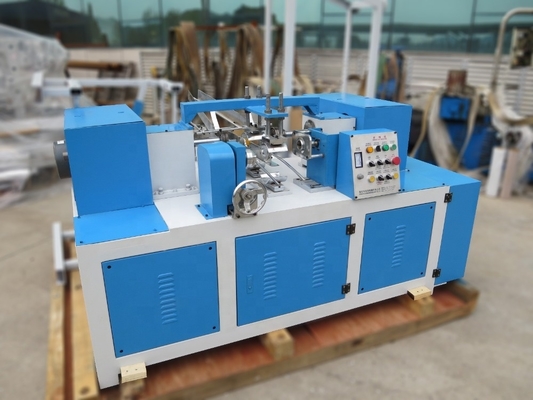

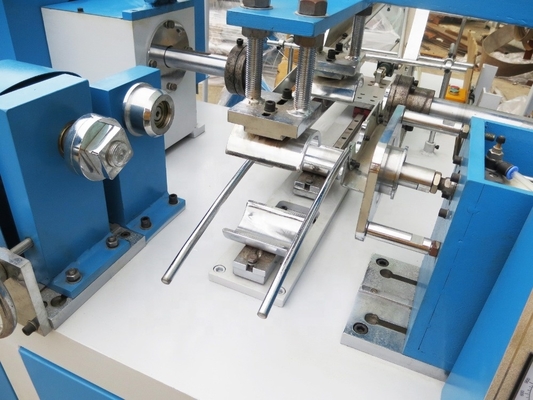

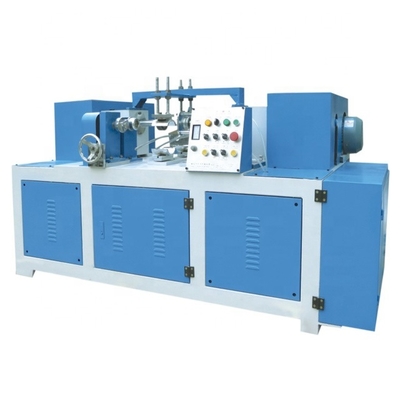

Pictures
CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 0
CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 2
CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 4

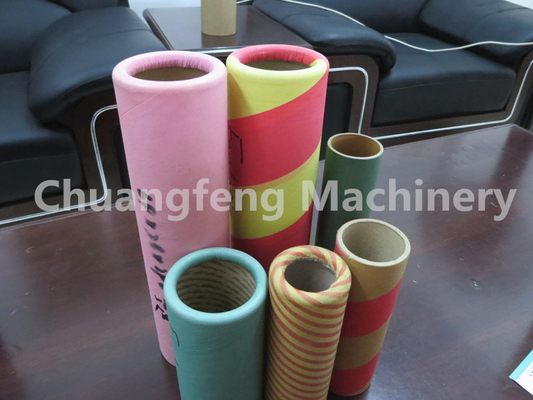

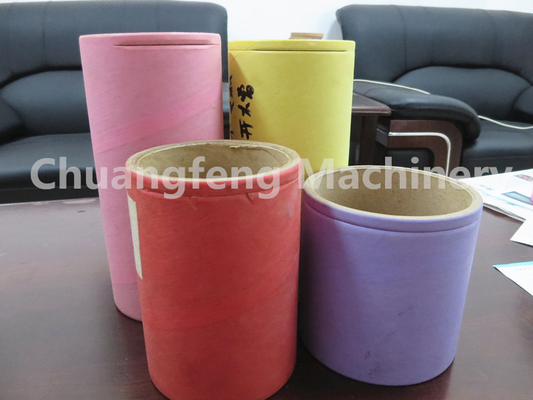

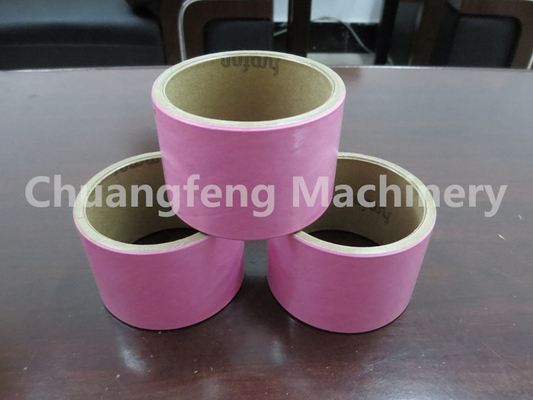

Finished Products

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 6 CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 8




Company Information

 CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 10CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 12

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 14CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 16

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 18CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 20







Packaging & Shipping

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 22CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 24

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 26CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 28

CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 30CFJB-50 Automatic Paper Tube Curling Machine DTY POY Paper Tube Production Machine 32
