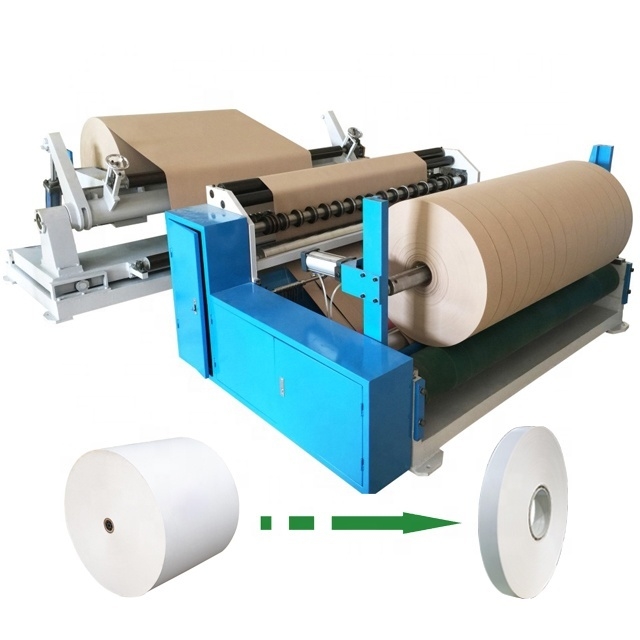

Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll

Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll

Large Image :  Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: ce
Contact Now
Detailed Product Description
Product Type: Paper Core Machine Processing Type: Paper Slitting And Rewinding Machine
Voltage: 380V / 3phase / 50Hz Power(w): 15kw
Dimension(l*w*h): 3500*3300*1200mm Warranty: 1 Year
Production Capacity: 1-150m/min. Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor
Weight (KG): 3000 Brands Of Components: Can Be Customized
After Warranty Service: Video Technical Support Product Name: Automatic High Speed Paper Roll Slitting Rewinding Machine
Function: Cut Jumbo Paper Roll Into Small Pieces Total Power: 380V 50Hz 3Phase
Material: 304 Stainless Steel Rewind Size: 3000*1700*1100mm
Undwind Size: 3300*1200*1200mm Weight: 3000kg

Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 0
Production Description
Model
CFFQ-200
Material Paper
60-600gsm
Unwind Width
600-1600mm
Unwind Diameter
1300mm
Rewind Diameter
1300mm
Minimum Slitting Width
35mm
Working Speed
0-200m/min
Speed Regulation
By Inverter
Material Paper Loading Device
Shaftless
Loading
Automatically By Hydraulic
Unloading
Automatically By Pneumatic
Power Supply
380V 50Hz 3Phase
Rewinder Device
Air Expanding Shaft
Jumbo Paper Loading Device
1 Pair (76mmID)
Hydraulic Lifting Device
1 Set
Discharging Air Cylinder
1 Piece
Braking Device
2 Pieces (Air Brake)
Blades
20 Sets (Top & Bottom)
Operating Box
1 Set
Tool
1 Set
Curved Roller
Have
Measurement
3300*1200*1200mm(Unwind Side）
Weight
3000Kgs
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 2

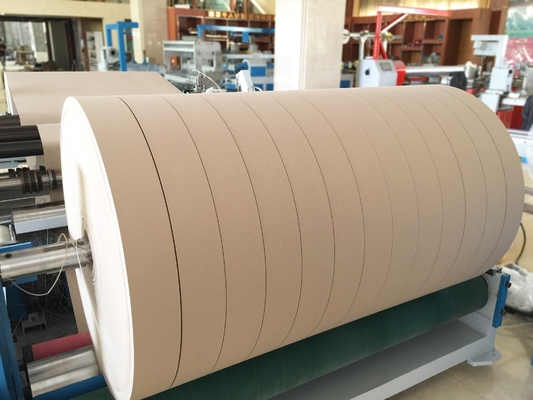

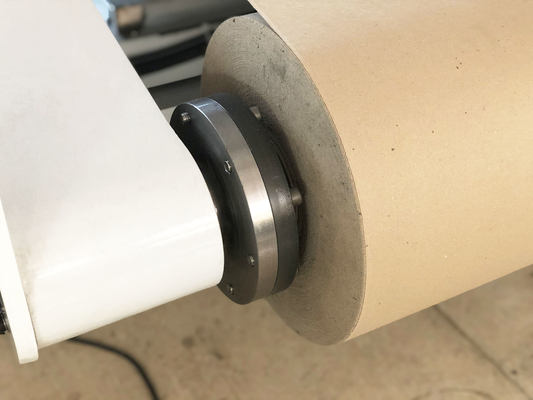

Details Images
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 4
Recommend Products
Company Profile
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 6
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 8
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 10
Certifications
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 12
Packing & Delivery
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 14
FAQ
Automatic High Speed Slitting Cutting Machine for Jumbo Paper Roll 16

Contact Details
Wenzhou Chuangfeng Machinery Co., Ltd.
