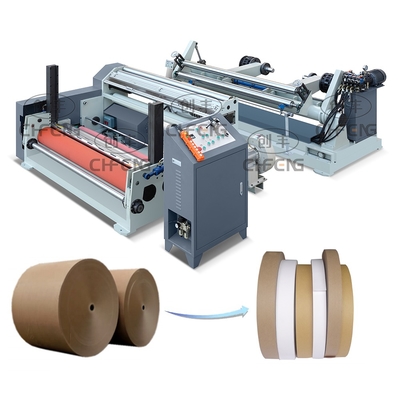

PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE

PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE

Large Image :  PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: ce
Contact Now
Detailed Product Description
Product Type: Paper Core Machine Processing Type: Paper Slitting And Rewinding Machine
Voltage: 380V / 3phase / 50Hz Power(w): 15kw
Dimension(l*w*h): 3500*3300*1200mm Warranty: 1 Year
Production Capacity: 1-180m/min. Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: PLC, Motor
Brands Of Components: Can Be Customized Showroom Location: None
Condition: New Marketing Type: Hot Product 2019
Warranty Of Core Components: 1.5 Years Applicable Industries: Manufacturing Plant, Printing Shops, Paper Tube Production
Weight: 2800 Kg

PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 0
Production Description
Model
CFFQ-200
Material Paper
60-600gsm
Unwind Width
600-1600mm
Unwind Diameter
1300mm
Rewind Diameter
1300mm
Minimum Slitting Width
35mm
Working Speed
0-200m/min
Speed Regulation
By Inverter
Material Paper Loading Device
Shaftless
Loading
Automatically By Hydraulic
Unloading
Automatically By Pneumatic
Power Supply
380V 50Hz 3Phase
Rewinder Device
Air Expanding Shaft
Jumbo Paper Loading Device
1 Pair (76mmID)
Hydraulic Lifting Device
1 Set
Discharging Air Cylinder
1 Piece
Braking Device
2 Pieces (Air Brake)
Blades
20 Sets (Top & Bottom)
Operating Box
1 Set
Tool
1 Set
Curved Roller
Have
Measurement
3300*1200*1200mm(Unwind Side）
Weight
3000Kgs
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 2

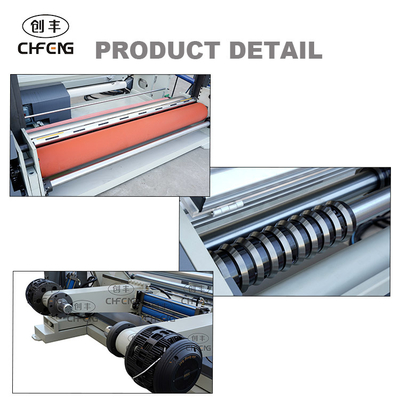

Details Images
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 4
Company Profile
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 6
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 8
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 10
Certifications
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 12
Packing & Delivery
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 14
FAQ
PLC Controlled Paper Slitting and Rewinding Machine Paper Slitter Rewinder Video Technical Support CE 16
