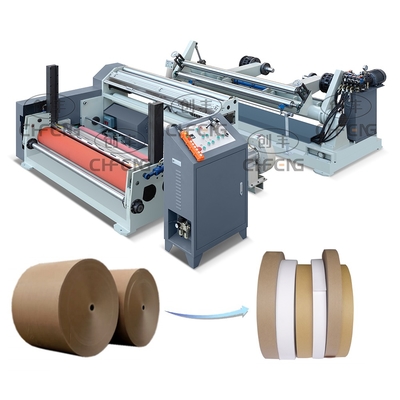

High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine

High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine

Large Image :  High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: ce
Contact Now
Detailed Product Description
Product Type: Paper Core Machine Processing Type: Paper Slitting And Rewinding Machine
Voltage: 380V/3phase/50HZ Power(w): 11kw
Dimension(l*w*h): 3500*3300*1200mm Warranty: 1 Year
Production Capacity: 180m/min Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: Motor
Weight (KG): 3000 Product Name: Split Paper Slitter Rewinder
After Warranty Service: Video Techincal Video Technical Support

High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 0
Production Description
Model
CFFQ-200
Material Paper
60-600gsm
Unwind Width
600-1600mm
Unwind Diameter
1300mm
Rewind Diameter
1300mm
Minimum Slitting Width
35mm
Working Speed
0-200m/min
Speed Regulation
By Inverter
Material Paper Loading Device
Shaftless
Loading
Automatically By Hydraulic
Unloading
Automatically By Pneumatic
Power Supply
380V 50Hz 3Phase
Rewinder Device
Air Expanding Shaft
Jumbo Paper Loading Device
1 Pair (76mmID)
Hydraulic Lifting Device
1 Set
Discharging Air Cylinder
1 Piece
Braking Device
2 Pieces (Air Brake)
Blades
20 Sets (Top & Bottom)
Operating Box
1 Set
Tool
1 Set
Curved Roller
Have
Measurement
3300*1200*1200mm(Unwind Side）
Weight
3000Kgs
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 2

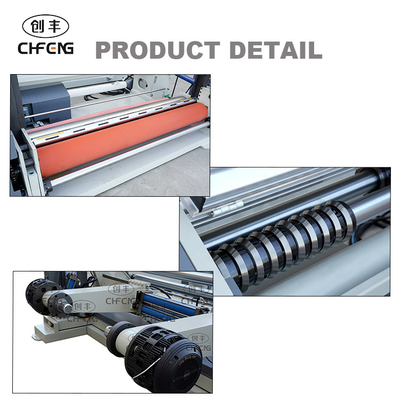

Details Images
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 4
Recommend Products
Company Profile
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 6
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 8
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 10
Certifications
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 12
Packing & Delivery
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 14
FAQ
High Speed Jumbo Roll Cutter to Small Width Cardboard Reels Paper Cutting Machine Kraft Paper Slitter Rewinder Machine 16

Contact Details
Wenzhou Chuangfeng Machinery Co., Ltd.
