ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021

ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021

Large Image :  ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: CE
Model Number: CFFQ-50
Contact Now
Detailed Product Description
Industrial Use: Household Products, Gift Packaging Use: Other Household Products
Paper Type: Craft Paper Printing Handling: Other
Size: 1100*1000*1350mm Custom Order: Accept
Feature: Other Material: Paper
Condition: New Weight: 480kgs
Warranty: 12 Months Voltage: 380V / 3phase / 50Hz
Brands Of Components: Can Be Customized

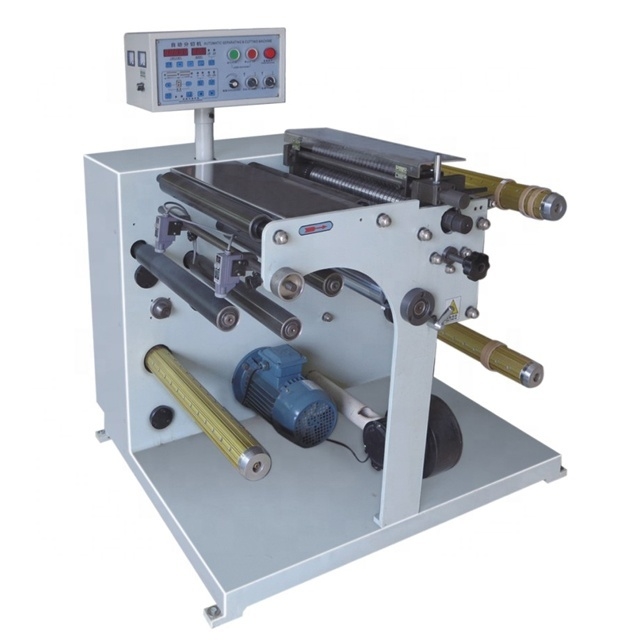

CFFQ-50 Small Paper Slitter Rewinder

CFFQ-50 Small Paper Slitting Rewinding Machine is suitable for paper straw production.
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 0
Details Images
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 2

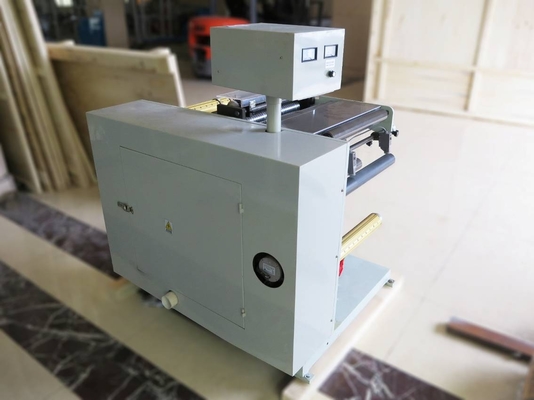

The back photo of the whole machine
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 4

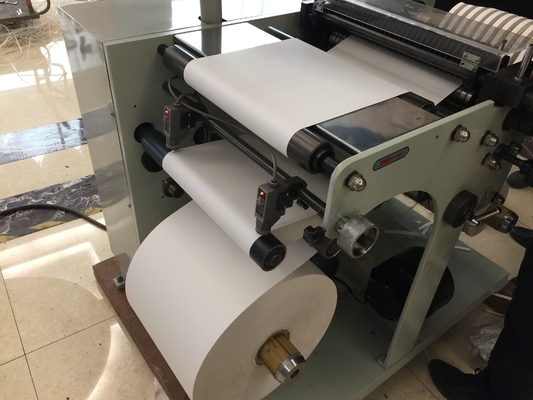

Unwind part
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 6

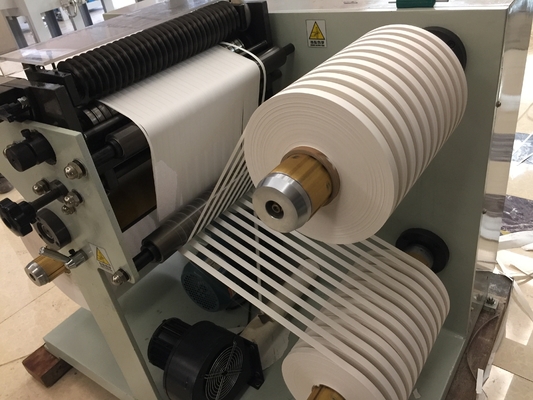

Rewinder part
PRODUCT SPECIFICATIONS
Model No.
CFFQ-150
Unwind width
450 mm
Unwind diameter
900 mm max.
Rewind diameter
550 mm max.
Minimum slitting width
13.5 mm
Working speed
1-100 m/min
Unwind roll clamping
By air expanding shaft
rewind roll clamping
By air expanding shaft
Voltage
380 V/50 Hz /3 phase
Tension control
Closed-loop tension control
Meter counting
Automatic
Deviation rectifying
By photoelectric eye
Rewinding roll
Double
Operating person
1 person
Main motor
2 KW
Blades on machine
30 sets
Operating box
1 set
Tool box
1 set
Measurement
1100*1000*1350 mm
Weight
480 kgs

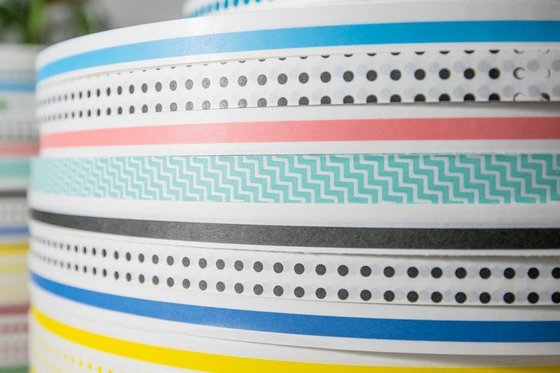

FINISHED PRODUCTS
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 8
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 10
PACKAGING & DELIVERY
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 12
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 14

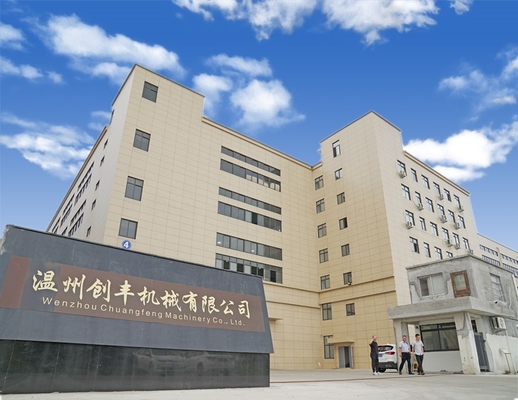

COMPANY PROFILE
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 16
ChuangFeng Small Slitter Rewinder Machine Paper Roll Cutting Machine 2021 18
Wenzhou Chuangfeng Machinery Co., Ltd. as a professional machine manufacturer has more than 15 years’ experience on paper tube & core machine manufacturing.
Our machines have been exported to South Africa, Egypt, Morocco, Saudi Arabia, Israel, Indonesia, Malaysia, Singapore, Japan,Philippines, Thailand, Vietnam, Bangladesh, Poland, Spain, UK, Ukraine, Russia, Uzbekistan, USA, etc.
Chuangfeng has its experienced R&D team; strict quality control system and excellent after-sales service, aims to provide
customers with high quality machines at a fair price. We always believe that Quality & Service is the secret of success!
