Automatic Slitter Rewinder for Paper Straw with Duplex Rewind

Automatic Slitter Rewinder for Paper Straw with Duplex Rewind
Automatic Slitter Rewinder for Paper Straw with Duplex Rewind Automatic Slitter Rewinder for Paper Straw with Duplex Rewind Automatic Slitter Rewinder for Paper Straw with Duplex Rewind Automatic Slitter Rewinder for Paper Straw with Duplex Rewind Automatic Slitter Rewinder for Paper Straw with Duplex Rewind Automatic Slitter Rewinder for Paper Straw with Duplex Rewind Automatic Slitter Rewinder for Paper Straw with Duplex Rewind

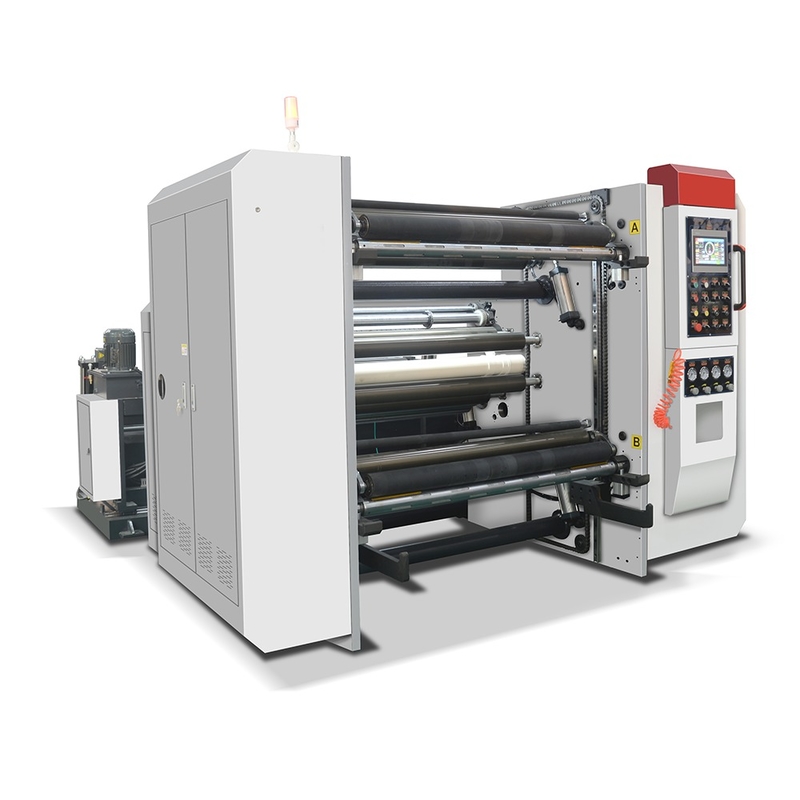

Large Image :  Automatic Slitter Rewinder for Paper Straw with Duplex Rewind

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Chuangfeng
Certification: ce
Contact Now
Detailed Product Description
Product Type: Other Processing Type: WINDING MACHINE
Voltage: 380V / 3phase / 50HZ (can Be Customized) Power(w): 3KW X3
Dimension(l*w*h): 5600*2250*2170mm Warranty: 12 Months
Production Capacity: Other Machinery Test Report: Provided
Video Outgoing-inspection: Provided Core Components: PLC, Motor
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company Showroom Location: Egypt, Canada, United Kingdom, Viet Nam, Saudi Arabia, India, Russia, Spain, UAE, Romania, Bangladesh, Kyrgyzstan
Condition: New Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Weight: 3200 Kg

 Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 0
Product Description

Paper slitter rewinder is used to slit large rolls to needed size.Most kinds of paper (from 30-300gsm); lso for Laminates (Film to film, film to paper); Primary film (thickness≥30 microns), non-woven and so on.

>Slit materials from jumbo roll to narrow width but big diameter finished rolls.

>Duplex rewind tension controlled by individual servo motor.

>Max. speed: <400m/min



Technical Parameters



Model
HFQA-1300
HFQA-1600
HFQA-1800
HFQA-2000
Max. web width(mm)
1300
1600
1800
2000
Max. unwinding diameter(mm)
Φ1400
Max.rewinder diameter
Φ1000(Φ1200 can be customized)
Min. rewinding web width(mm)
30
40
60
60
Precision of slitting
±0.15
Slitting thickness
 For paper:30-300g ,For film: 30-300μm
(according to the materials)

Mechanical speed(m/min)
≤400
Total power(kw)
27
27
37
37
Net weight(kg)
4500
5200
5800
6000
Overall Dimension(mm)
3700*3100*2100
3700*3400*2100
3700*3600*2100
3700*3800*2100
Pictures



High Speed Laminated Paper Jumbo Roll Slitting Rewinding Machine

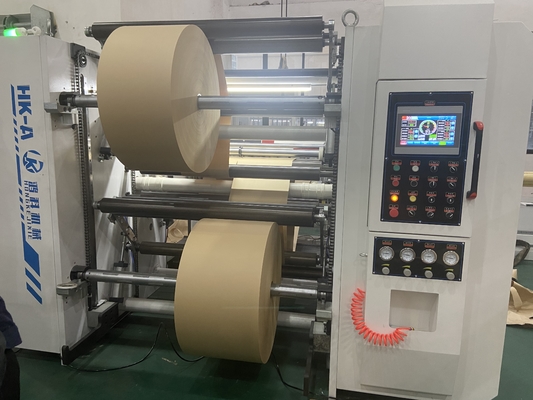

 Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 2

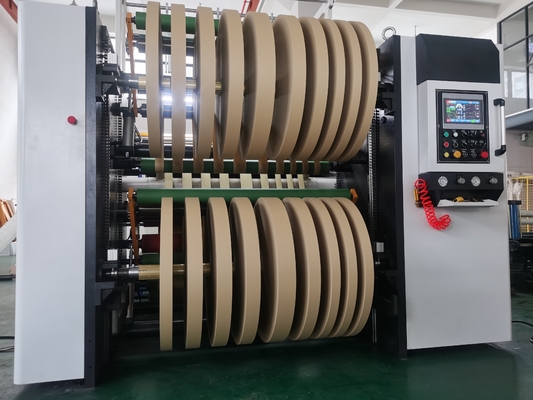

Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 4

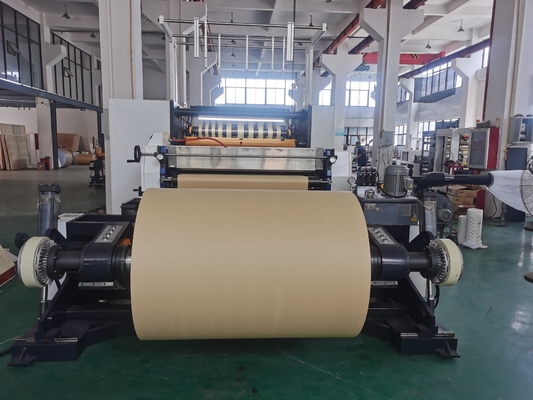

Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 6

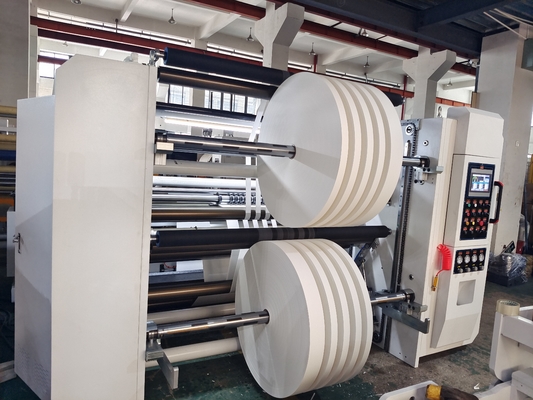

Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 8



company 0801

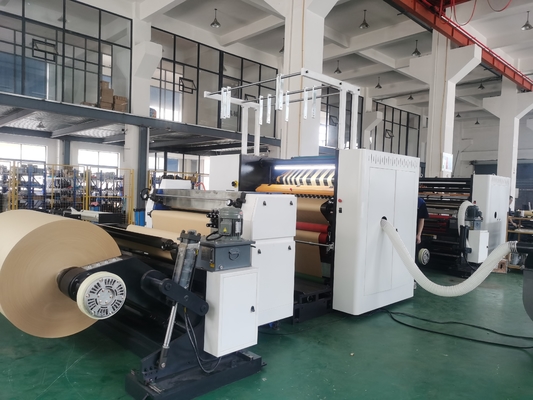

Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 10Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 12Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 14Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 16Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 18Automatic Slitter Rewinder for Paper Straw with Duplex Rewind 20
